HS 5000 Gas

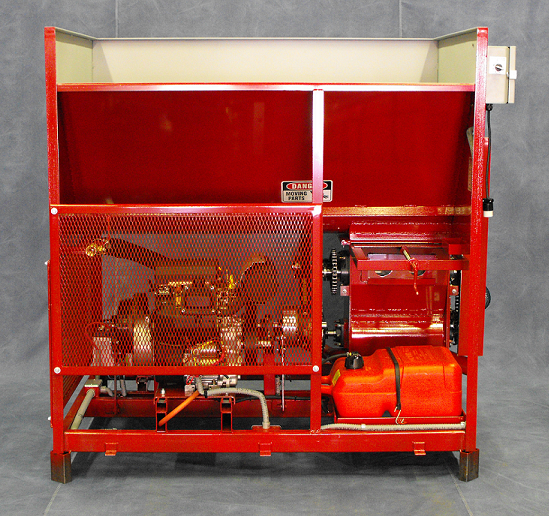

Heat Seal 5000 Gas Insulation Blowing Machine



Please call us to enquire!

Request a Quote

AIRLOCK EXHAUSTER:  This bleed off mechanism results in impoved coverage and greatly reduces the dust in the attic.

OUTPUT: Cellulose 117bags/hr (3,500lbs - 1,590 kg), Fiberglass 50 bags/hr (2,160 lbs - 987 kg), Rockwool 45 bags/hr (1,620 lbs - 736 kg)

POWER:  22HP cylinder Honda gasoline engine complete with electric start, 20 amp alternator, spin-on oil filter, pressurized lubrication, muffler exhaust system, stainless steel flexible tubing, 6 gallon tank.

DOUBLE CLUTCHES:  Electro-magnetic double clutches allow air and material flow to be controlled individually by remote control.  Expected life 10 to 15 years.

SAFETY CONTROL:  Saftey clutch will slip if any foreign material jams the machine.

POWER CONTROLS:  Motor mounted ignition switch, choke, throttle control and digital tachometer, hourmeter.

REMOTE CONTROL:  Box mounted on side of machine.  Totally seperate from ignition system.  Relays are plug in type. 150' remote cord supplied.

AIR CONTROL:  Bleed off valves can be operated independantly. One way air valve prevents insulation from backing up into blower.

MATERIAL CONTROL:  Slide gate.

HOPPER:  30 cubic foot capacity, made with heavy gauge metal with heavy-duty reinforced feeder paddles for uniform material feed.

SHREDDER:  Double shredder with self-cleaning tines.  Hinged doors on each side for easy access. Front door has plexiglass material feed monitoring window.

AIRLOCK CHAMBER:  Rotary type, plate steel construction (wear resistant), 16" long with 12" diameter with 3" outlet.  (Recommend 150' of 3" hose).

BLOWER:  Positive displacement 3L rotary lobe blower.  6 psi, 307 CFM

DIMENSIONS:  44" wide, 66" long, 60" high.  Shipping weight: 1,320 lbs



INSTALLATION:  When installed correctly, only outside air is used for:  Cooling of Gas Engine, Engine Carburetor, Blower Intake
